A retaining wall can look simple from the yard, but the material beneath it carries the load of the blocks, retained soil, and changing moisture conditions. In the Denver Metro Area, snowmelt, compacted soil, sloped lots, and freeze-thaw movement make the base part of the design, not an afterthought.
Talk with Faros Construction Services about your retaining wall base plan.
This guide was prepared by Ricardo Alfaro, founder of Faros Construction Services, to help Denver Metro Area property owners plan a durable retaining wall system.
The right retaining wall base material is typically a dense, angular aggregate that can be placed level and compacted. It should be selected alongside the wall system, soil, drainage plan, slope, and wall height. Clean drainage stone may serve a different purpose behind the wall. The best choice is not a universal recipe, because local conditions determine how the base and drainage layers should work together.
Before choosing aggregate, look at how water moves through the site and whether the excavation can provide a continuous, stable footing. The material decision becomes clearer when you understand how Denver soil conditions, compaction, and drainage influence the wall from the ground up.
What Is the Best Retaining Wall Base Material for Denver?
For many retaining wall systems, the best starting point is a dense-graded, angular crushed aggregate that includes smaller particles and fines. Its mixed particle sizes can interlock, compact into a stable leveling base, and support the wall system when the subgrade and drainage plan are prepared correctly. Clean angular stone can be appropriate in drainage zones, but it does not compact in the same way because it contains little or no fine material.
That distinction matters in the Denver Metro Area. Freeze-thaw cycles, snowmelt, soil type, slope, wall height, and water movement all influence how a base performs. There is no universal aggregate, depth, or installation recipe that fits every wall.
| Material | Typical role | Important consideration |
|---|---|---|
| Dense-graded angular crushed aggregate with fines | Leveling base that can compact into a firm, continuous footing | Requires proper moisture control, lift placement, and compaction |
| Clean angular stone | Drainage layer or drainage-oriented material in a designed wall assembly | Allows water to move through, but may not lock together as a leveling base |
| Rounded pea gravel | Generally unsuitable as the structural leveling base | Rounded particles can shift instead of interlocking under load |
| Sand or organic soil | Not a dependable structural base for a retaining wall | Sand can migrate, while organic soil decomposes and settles |
Why angular aggregate is usually preferred
Angular crushed particles have rough faces that help them resist movement when compacted. Fines fill some of the voids between larger pieces, which can create a more uniform bearing surface for the first course or footing. The goal is not simply to fill an excavation with rock. The base must be continuous, level, and compatible with the wall system.
Clean angular stone serves a different purpose. Its open voids can support drainage, especially when paired with the appropriate drainage aggregate, filter separation, and outlet plan. Using clean stone as the primary leveling base without considering how the wall system bears can leave an unstable or uneven platform.
Do not ignore freeze-thaw and drainage
Water held beneath or behind a wall can create movement as it freezes and thaws. Rounded gravel, sand, or organic soil can make the base less predictable, but even the right aggregate cannot correct poor excavation, trapped water, weak subgrade, or missing drainage. A Denver Metro site assessment should consider soil, slope, access, wall design, and snowmelt patterns before material is selected. Faros evaluates those conditions as part of its Denver hardscape and landscape contractor services.

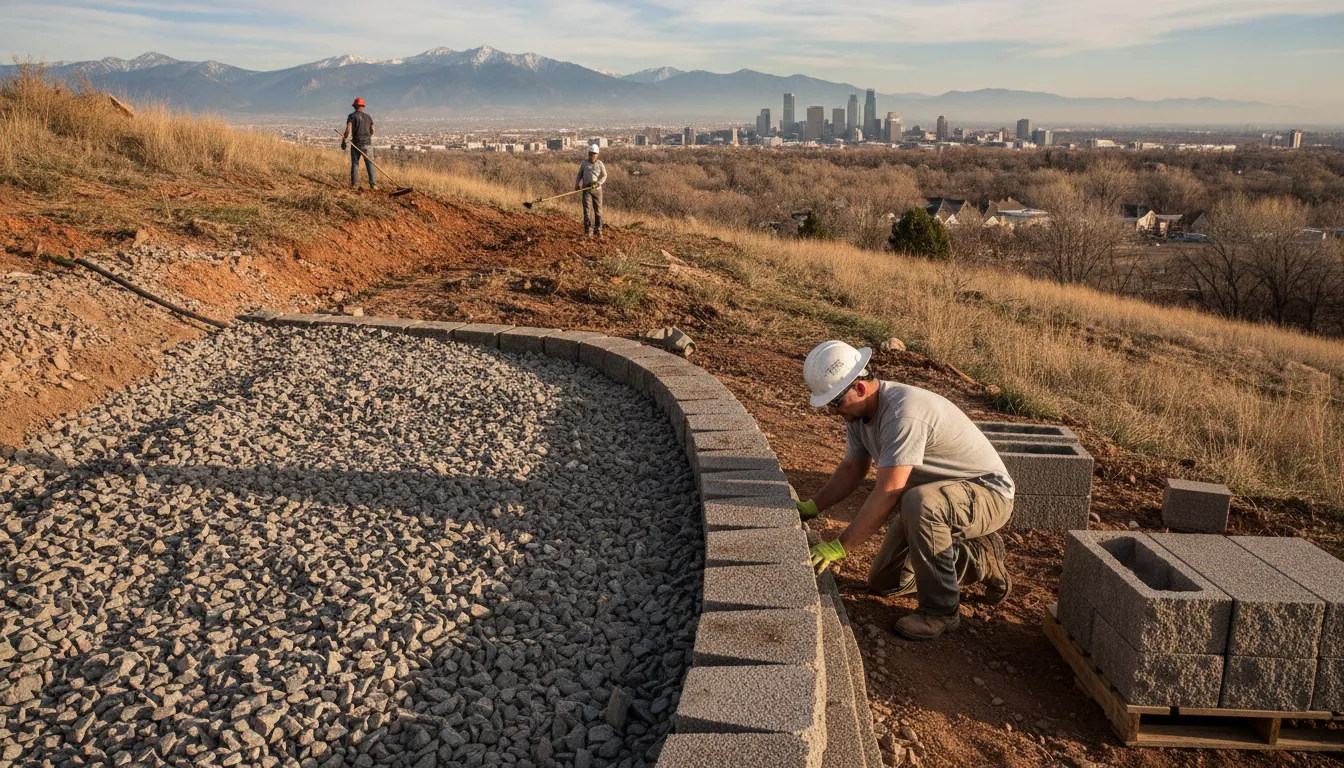

How Do You Prepare the Excavation and Compacted Base?
A dependable retaining wall base starts with a prepared foundation, not simply a layer of rock placed over existing ground. The excavation, subgrade, aggregate, leveling, and compaction plan should match the wall system, wall height, soil, slope, drainage needs, and available site access. Dimensions are therefore project-specific. A segmental retaining wall specification may identify a leveling pad base, drainage aggregate, reinforced backfill, drainage pipe, and geotextile filter as separate parts of the system. These are separate parts of the system, rather than one isolated base layer. Review the Allan Block retaining wall installation guidance for examples of that technical terminology.
- Excavate to the planned line and grade. Remove vegetation, organic soil, loose fill, and other unsuitable material from the wall footprint. The excavation should provide a continuous working area and account for the wall’s layout, setbacks, drainage components, and construction access. A narrow or irregular trench can make it difficult to establish a consistent base.
- Evaluate and prepare the subgrade. Expose the soil that will support the base, then check for soft spots, saturated areas, buried debris, utility conflicts, and unexpected changes in soil. Weak or wet ground may require correction before aggregate is placed. On a sloped Denver Metro Area property, the crew may also need to coordinate the footing layout with the grade and surface-water path.
- Place the selected aggregate in controlled lifts. Use retaining wall base material selected for the wall system and site conditions. Place it in manageable layers rather than dumping the full base depth at once. The required aggregate type and total thickness depend on the design, soil, wall height, drainage strategy, and local requirements, so a generic depth should not be treated as a universal standard.
- Level the base continuously. Shape and screed each lift so the finished foundation is even, stable, and aligned with the wall layout. A consistent leveling pad helps the first course sit correctly and prevents irregular bearing points that can transfer movement into the wall.
- Compact every lift. Compact each layer with equipment suited to the aggregate, available access, and surrounding conditions. The goal is a firm, uniform base without loose pockets or unaddressed soft areas. Moisture, soil type, and confined access can affect how compaction should be performed and verified.
- Inspect before building upward. Confirm the line, level, width, bearing condition, drainage provisions, and transitions at the ends of the wall before the first wall units are installed. The inspection should also account for nearby utilities, slopes, structures, driveways, and other loads. Careful measurements and site assessment help identify changes before they become difficult to correct.
How Does Drainage Protect a Retaining Wall Base?
Drainage protects the retaining wall base by giving water a controlled path away from the wall and its foundation. A complete system may combine drainage aggregate, perforated piping, filter separation, suitable backfill, and surface grading so water does not remain trapped behind the wall.
Water pressure is a design concern because saturated soil can push against the wall and change how the base performs. In the Denver Metro Area, snowmelt, rain, compacted soils, and freeze-thaw cycles make drainage planning part of the wall design, not an afterthought.
Drainage aggregate creates open pathways
Drainage aggregate is placed behind the wall to create connected spaces where water can move downward and toward an outlet. It should be selected for the wall system and site conditions. Clean angular stone may support rapid drainage, while other parts of the project may call for a compactable aggregate in the base or backfill. The right retaining wall base material is not automatically the same material used in every drainage layer.
Colorado State University Extension explains that pore space controls soil drainage characteristics. Sandy soils with larger pores can move water quickly, while compacted or clay-heavy soils may drain slowly or become waterlogged. This is why simply placing stone against a wall does not solve every drainage problem. The surrounding soil and the available discharge route still matter. Colorado State University Extension explains soil drainage and pore space.
Pipe and filter separation keep the system working
A perforated drain pipe can collect water at the lower part of the drainage zone and carry it toward an approved outlet or daylight location. Its position, slope, outlet, and protection from blockage should be coordinated with the wall design. A geotextile filter or other approved separation layer can help keep surrounding soil from migrating into the drainage aggregate and reducing its open space.
Technical retaining wall specifications commonly identify a leveling pad base, drainage aggregate, reinforced backfill, drainage pipe, and geotextile filter as separate system components. That terminology is useful because each layer has a different job. The base supports the wall, the drainage aggregate provides a water path, the pipe transports collected water, and the filter helps separate soil from the drainage zone.
Surface runoff must be managed above the wall
Water can enter from behind the wall, but it can also arrive from an uphill yard, downspout, slope, or paved area. Surface grading should direct runoff away from the wall or into a planned drainage feature. Otherwise, a properly installed subsurface system may receive more water than it can reasonably handle.
For that reason, drainage planning should consider the wall height, soil, slope, nearby loads, access, wall system, and local requirements together. A Denver Metro site assessment can identify where water is coming from and whether the proposed base and drainage layers fit the actual conditions.
When Do Slopes, Wall Height, and Geogrid Change the Plan?
Slopes, wall height, nearby loads, soil conditions, and access can change both the retaining wall design and the retaining wall base material selected for the site. A simple, low landscape wall may need a different foundation approach than a taller wall holding back a slope beside a driveway or structure.
Look beyond the wall face
The visible height is only one part of the design. A sloped site can increase the amount of soil the wall must retain, while a driveway, patio, parked vehicle, or nearby structure can add a surcharge above or behind it. Weak, wet, or recently disturbed soil may also require removal, improvement, deeper excavation, or a different reinforcement plan. Tight setbacks can make it difficult to excavate and compact the full base and backfill area safely.
These conditions affect the width and continuity of the leveling base, the type of backfill, drainage detailing, and the amount of working room available for compaction. A segmental retaining wall specification may identify separate components for a leveling pad base, drainage aggregate, reinforced backfill, drainage pipe, geosynthetic reinforcement, and a geotextile filter. That separation is a useful reminder that the base is part of a larger system, not an isolated layer. Review the retaining wall system components when comparing plans, but do not apply a manufacturer specification without matching it to the selected wall system and site.
When geogrid may be appropriate
Geogrid is a reinforcement material that can extend back into the retained soil to help the wall resist movement. It may be considered for taller walls, sloped lots, surcharge loads, weak soils, or locations where the wall cannot rely on enough mass and setback alone. The required reinforcement length, elevation, spacing, and connection depend on the wall units, soil properties, geometry, and loads.
Geogrid is not an automatic add-on. Adding it without accounting for the excavation limits, drainage, compaction, and wall design can create a false sense of security. Conversely, omitting reinforcement where the site requires it can leave the wall vulnerable to movement. A site assessment should determine whether the plan needs reinforcement, stepped construction, a revised alignment, or another wall approach.
Request a site assessment before finalizing your retaining wall plan.
Permits and engineering review
Taller or structurally complex walls may require permits, engineering review, inspections, or HOA coordination, depending on the jurisdiction and project conditions. A wall near a property line, building, driveway, utility, or steep slope deserves early review rather than an assumption that a standard detail will apply. A Denver hardscape and landscape contractor can evaluate soil, slope, access, drainage, utilities, and project constraints before construction. In the Denver Metro Area, that planning also helps account for freeze-thaw conditions and rapid snowmelt. The goal is a coordinated wall system in which the base, reinforcement, drainage, and surrounding grade work together.
What Warning Signs Show a Retaining Wall Needs Attention?
A retaining wall needs prompt attention when its shape, joints, drainage, or surrounding soil begins to change. Leaning, bulging, settlement, widening joints, washout, standing water, blocked outlets, and new soil movement can indicate that water pressure, erosion, weak support, or seasonal movement is affecting the wall. These signs do not identify one universal repair, so observe the changes safely and arrange a site-specific evaluation before the condition worsens.
Look for movement in the wall and surrounding ground
Step back and view the wall from several angles. A wall that leans outward, develops a localized bulge, or appears to have shifted in a straight line deserves closer review. On segmental walls, widening joints, separated blocks, or courses that no longer align can show that the wall is moving. Settlement may appear as a low section, a dip along the top, or a cap that has dropped relative to adjacent sections.
Also inspect the soil above and below the wall. Fresh cracks, a sloping grade, exposed base material, or soil collecting at the toe can point to movement or washout. Erosion channels after rain or snowmelt are especially important in the Denver Metro Area, where drainage patterns can change as snow and ice melt. Do not dig beside the wall or push displaced blocks back into place. Those actions can disturb the support that remains.
Check drainage without taking unnecessary risks
Standing water behind or beside the wall, muddy seepage, saturated soil, and blocked outlets are warning signs that water may not be moving through the intended drainage path. Look for clogged weep holes, buried outlets, damaged discharge areas, or downspouts releasing water toward the wall. Clear only loose surface debris that you can reach safely. Avoid dismantling the wall, excavating at its base, or entering an unstable area.
The right concrete contractor can assess both visible movement and the conditions supporting the wall. A professional review should consider the wall height, soil, slope, drainage, access, nearby loads, and the retaining wall base material. Faros site assessments include measurements and structural evaluation before construction or corrective planning.
Document changes and request an evaluation
Photograph the wall from the same locations after heavy rain, snowmelt, or freeze-thaw periods. Note when cracks, ponding, leaning, or soil movement first appeared. Keep people, vehicles, and equipment away from a wall that is rapidly shifting, severely bulging, or affecting a walkway or structure. Clear documentation helps an experienced professional distinguish routine surface wear from movement that requires a more involved plan.
Plan your retaining wall base and drainage approach with Faros Construction Services.
Frequently Asked Questions
These common questions summarize how retaining wall base material, drainage, site conditions, and wall design work together in the Denver Metro Area.
What is the best material for a retaining wall base?
A dense-graded, angular crushed aggregate is commonly used because it can be leveled and compacted into a stable footing. Clean angular stone may be better suited to drainage zones, while rounded gravel, sand, and organic soil are generally poor choices for a structural base. The wall system, soil, slope, and drainage plan should guide the final selection.
How do you make a base for a retaining wall?
Excavate unsuitable soil, establish a continuous level trench, place the selected aggregate in controlled lifts, and compact each lift before setting the first course. The required excavation and base dimensions are site-specific. Wall height, block system, soil conditions, slope, access, and nearby loads all affect the installation plan.
What material should go behind a retaining wall?
Drainage aggregate is typically placed behind the wall so water can move toward a suitable outlet. A perforated drainpipe, filter separation, and a surface-water plan may also be needed. This matters in the Denver Metro Area because compacted or clay-heavy soils can drain slowly. PlantTalk Colorado explains that drainage, foundations, placement, and materials must be considered together: retaining wall design guidance.
What size gravel should you use for a retaining wall base?
There is no universal gravel size for every wall. Project specifications may distinguish between a compactable base with fines and clean drainage stone, and aggregate classifications can vary by wall system. Select the size and gradation that match the manufacturer requirements, wall height, soil, and drainage design rather than relying on a general rule.
When should a retaining wall receive professional evaluation?
Have the wall assessed if it is leaning, bulging, settling, developing widening joints, showing washout, or retaining standing water. Slopes, wet soils, taller walls, nearby driveways, and other loads can require reinforcement, stepped construction, engineering review, or local approvals. Prompt evaluation is especially important before freeze-thaw conditions worsen movement.
The right retaining wall base material depends on your Denver Metro Area site’s soil, slope, drainage, wall system, and surrounding conditions. A site-specific review can help clarify the preparation steps before installation begins and support a practical plan for lasting performance.
